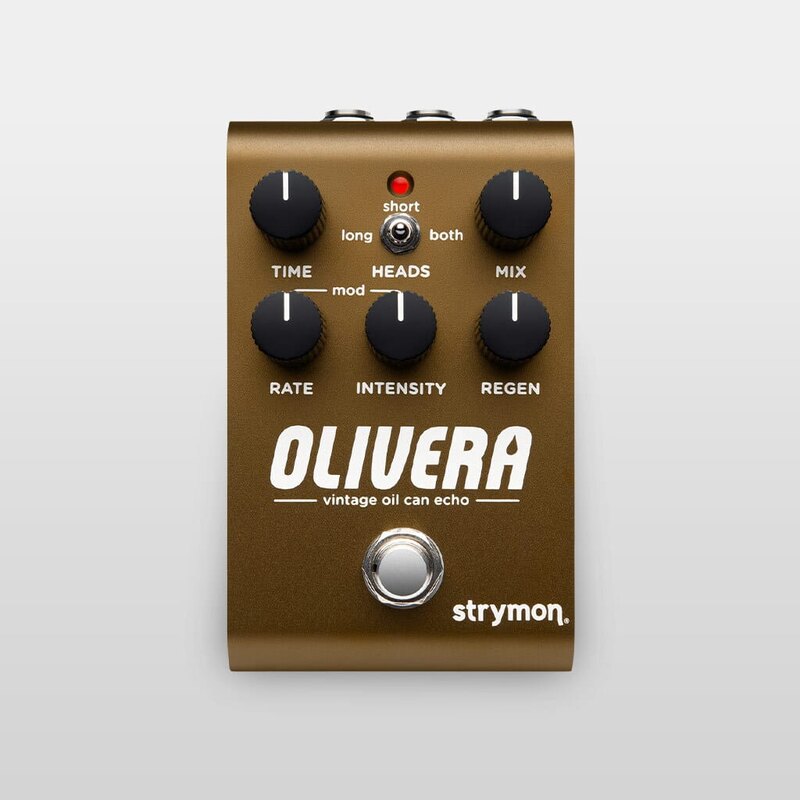

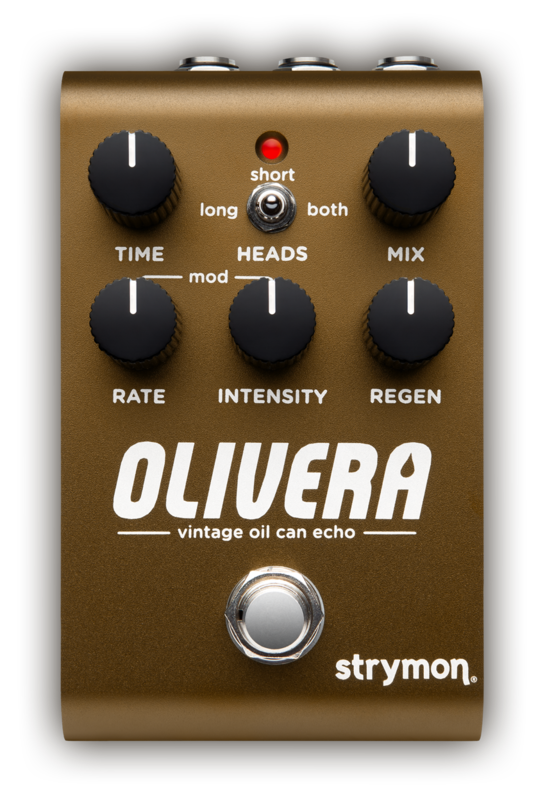

Olivera
Olivera is a stereo digital pedal that emulates a vintage oil can echo, the electromechanical delay with a rotating charged disk. It suits guitarists and keyboardists who want dark, modulated, reverberant repeats with MIDI and stereo options.
- Oil can echo emulation with a new algorithm
- Short, Long or Both playback heads
- Delay time 200ms–800ms disc rotation
- Discrete stereo operation, TRS in and out
- 300 presets and full MIDI via EXP/MIDI or USB
- True or buffered bypass, delay spillover
Fotoattēli
6Sludinājumi
Šim modelim vēl nav sludinājumu
Kad kāds pārdos Olivera, sludinājumi un pārdošanas vēsture parādīsies šeit.
Pārdot tādu pašuApraksts
Olivera models the behaviour of oil can echo units, which store a static charge on a rotating disk in an oil-filled can. It reproduces the murky, band-limited repeats, the residual repeats that remain even with no regeneration, and the uneven cadence caused by the disk's rotation. Delay time is set by a virtual rotation speed and the Heads switch selects the short, long or both playback heads.

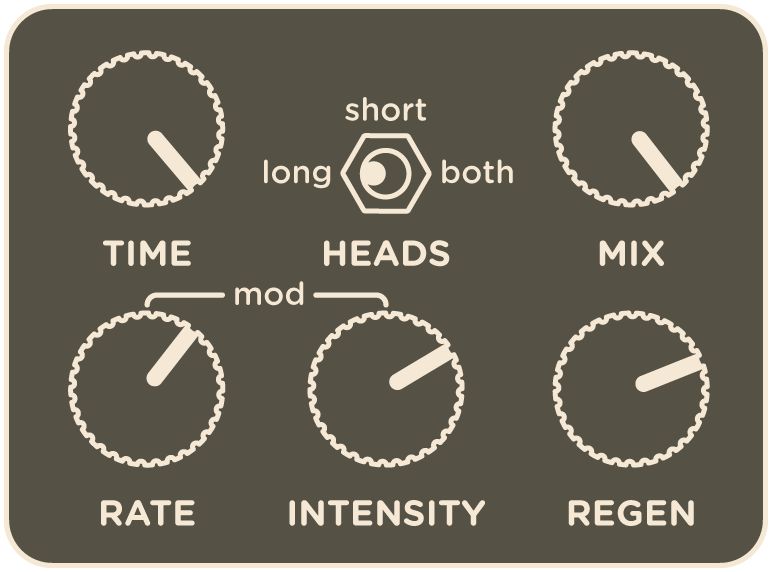

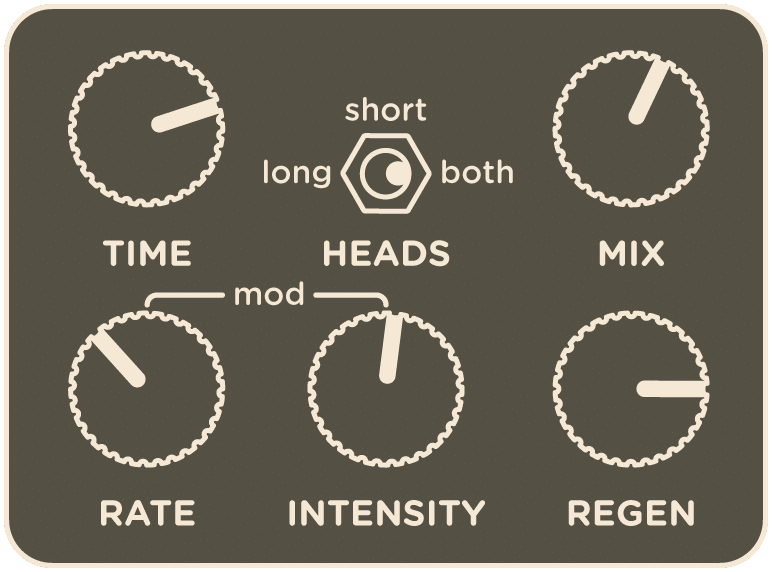

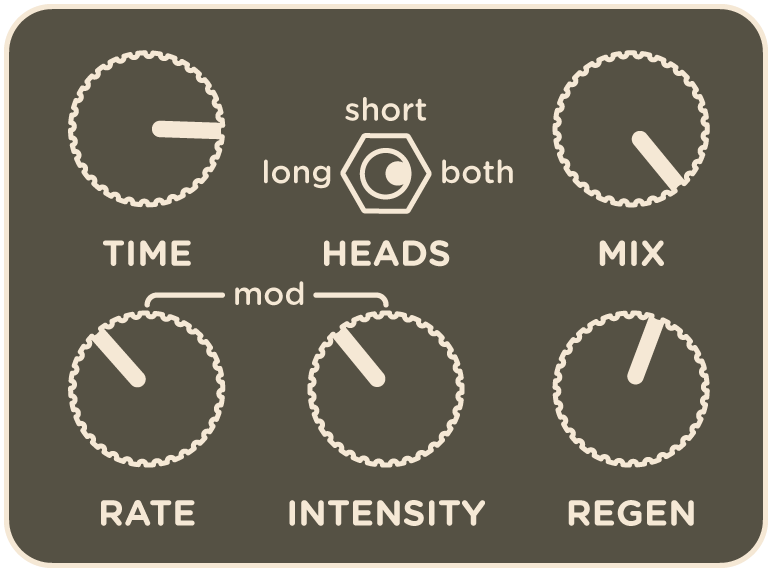

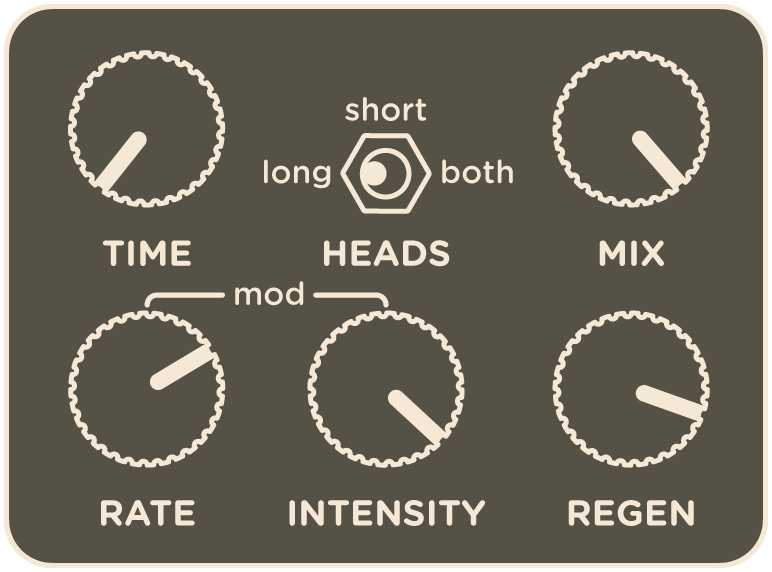

Controls are Time, Mix, Rate, Regen and Intensity, plus a three-way Heads switch. Further functions include delay spillover, a Class A JFET stereo input preamp, selectable true or buffered bypass, 300 presets and full MIDI implementation. A Strymon MiniSwitch can hold infinite repeats, and a MultiSwitch Plus gives preset and custom-mode control.
The pedal has TRS stereo input and output jacks, with a rear switch for mono, mono-to-stereo or stereo operation. An EXP/MIDI jack accepts an expression pedal, MiniSwitch, MultiSwitch Plus or TRS MIDI, and a USB port handles MIDI from a computer and firmware updates. It runs from a 9V DC supply, which is not included.
Video
Specifikācijas
- Zīmols
- Strymon
- Modelis
- Olivera
- Kategorija
- Efekti un pedāļi
Inputs
- Audio input
- High impedance, ultra low-noise, discrete Class A JFET TRS stereo input
- Audio input impedance
- 1M Ohm
- Expression/MIDI input
- TRS expression pedal, MiniSwitch, MultiSwitch Plus or TRS MIDI connection
Outputs
- Audio output
- Low impedance TRS stereo output
- Audio output impedance
- 100 Ohm
- I/O modes
- Mono In/Mono Out, Mono In/Stereo Out, Stereo In/Stereo Out
Connectivity
- MIDI
- Full MIDI implementation via EXP/MIDI jack or USB
- USB
- MIDI control from a computer and firmware updates
- Presets
- 300
Audio
- Converters
- 24-bit 96kHz A/D and D/A
- Processor
- 520MHz ARM Superscalar
- Processing
- 32-bit floating point
- Frequency response
- 20Hz to 20kHz
- Signal to noise ratio
- 116dB (typical)
- Delay time, Short head
- 72ms – 290ms
- Delay time, Long head
- 155ms – 620ms
- Disc rotation
- 200ms – 800ms (residual static repeats)
- Bypass
- Relay-switched true bypass (default) or buffered bypass
Power
- Power requirement
- 9V DC, center-negative, 2.1mm, 250mA minimum
- Power supply
- Not included
Physical
- Chassis
- Anodized aluminum
- Dimensions
- 4.6" deep x 2.7" wide x 2.2" tall (11.7 cm x 6.9 cm x 5.6 cm)
- Made in
- Designed and built in the USA
