Eudemonia
Eudemonia is a 10HP Eurorack module that combines a three-input mixer, two filters in series and an exponential VCA. It suits modular users who want a compact analog wave processing section with CV level indicators.
- 10HP Eurorack module, 35mm deep
- 3 to 1 mixer
- 24dB resonant low pass filter
- 18dB non-resonant high pass filter in series
- Exponential VCA with peak indicator
- LED for each control shows CV sum
Fotoattēli
8Sludinājumi
Šim modelim vēl nav sludinājumu
Kad kāds pārdos Eudemonia, sludinājumi un pārdošanas vēsture parādīsies šeit.
Pārdot tādu pašuApraksts

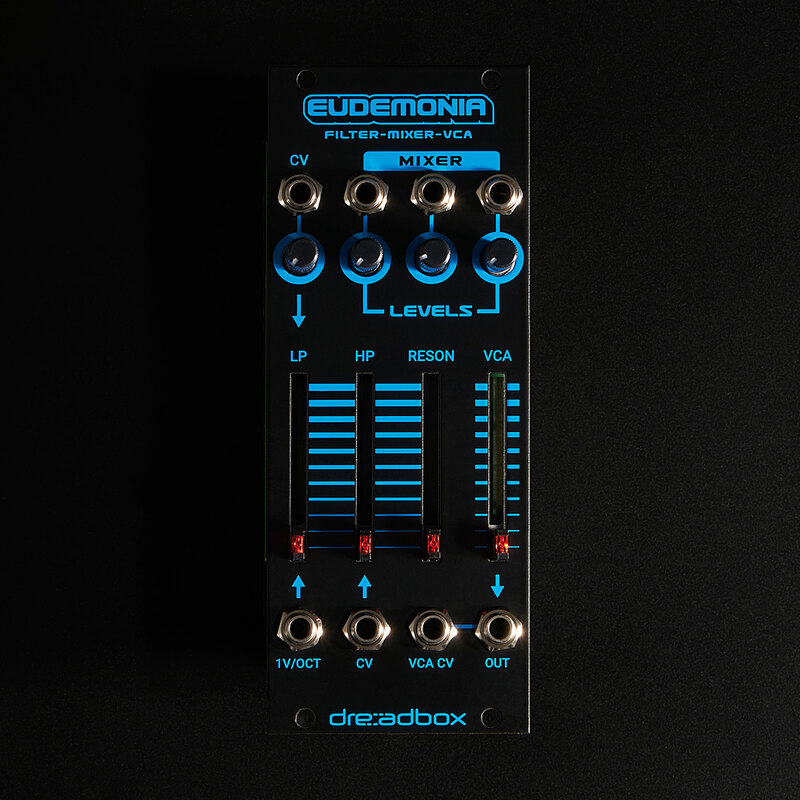

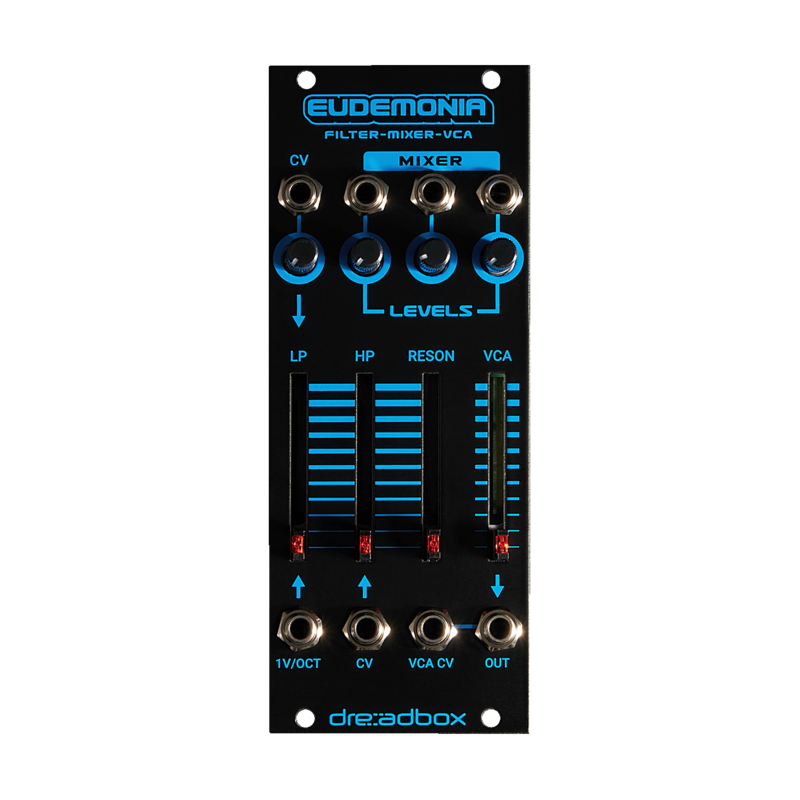

Eudemonia is an analog wave generator processor built as a single Eurorack module. A three-to-one mixer feeds a dual filter section, and the signal then passes through an exponential VCA.
The two filters run in series. The first is a 24dB resonant low pass filter and the second is an 18dB non-resonant high pass filter. The VCA has a peak indicator that responds to signals above 10pp. Every control has an LED that shows the current CV sum, so the effect of modulation can be seen at a glance.

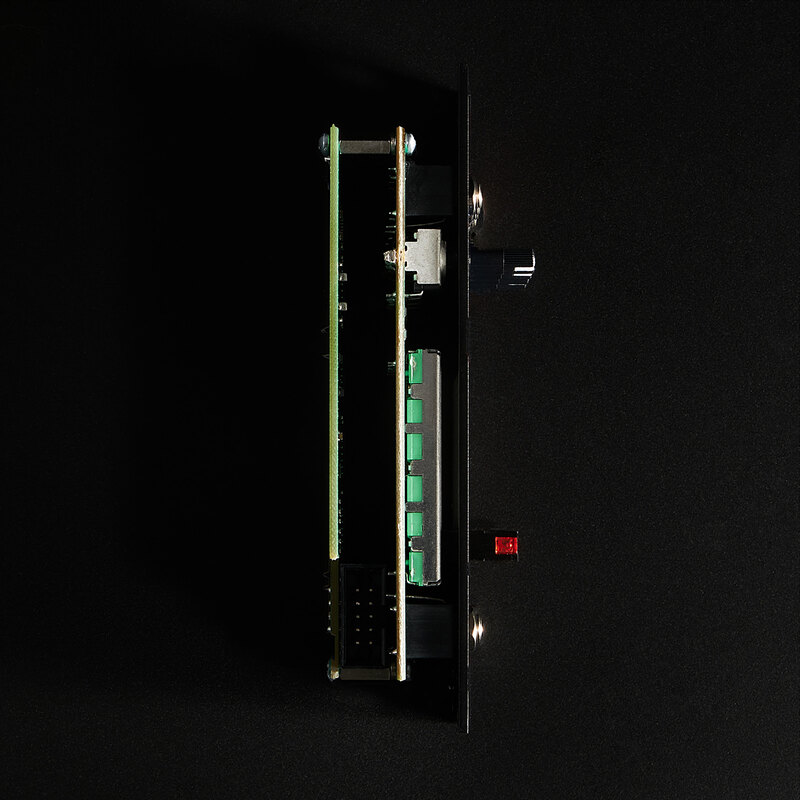

The module is 10HP wide and only 35mm deep, which suits shallow cases. It draws 61mA from the +12V rail and 69mA from the -12V rail, and it connects through the standard Eurorack power and patch cable system.
Video
Specifikācijas
- Zīmols
- Dreadbox
- Modelis
- Eudemonia
- Kategorija
- Sintezatori un klaviatūras › Modulārie (Eurorack)
Audio
- Type
- Analog Wave Generator Processor
- Mixer
- 3 to 1
- Filter configuration
- Dual filter in series
- Low pass filter
- 24dB resonant
- High pass filter
- 18dB non-resonant
- VCA
- Exponential
- VCA peak indicator
- Above 10pp
Controls
- CV indicators
- LED for all controls showing the current CV sum
Power
- Current draw +12V
- 61mA
- Current draw -12V
- 69mA
Physical
- Width
- 10HP
- Depth
- 35mm
- Format
- Eurorack module
